Description

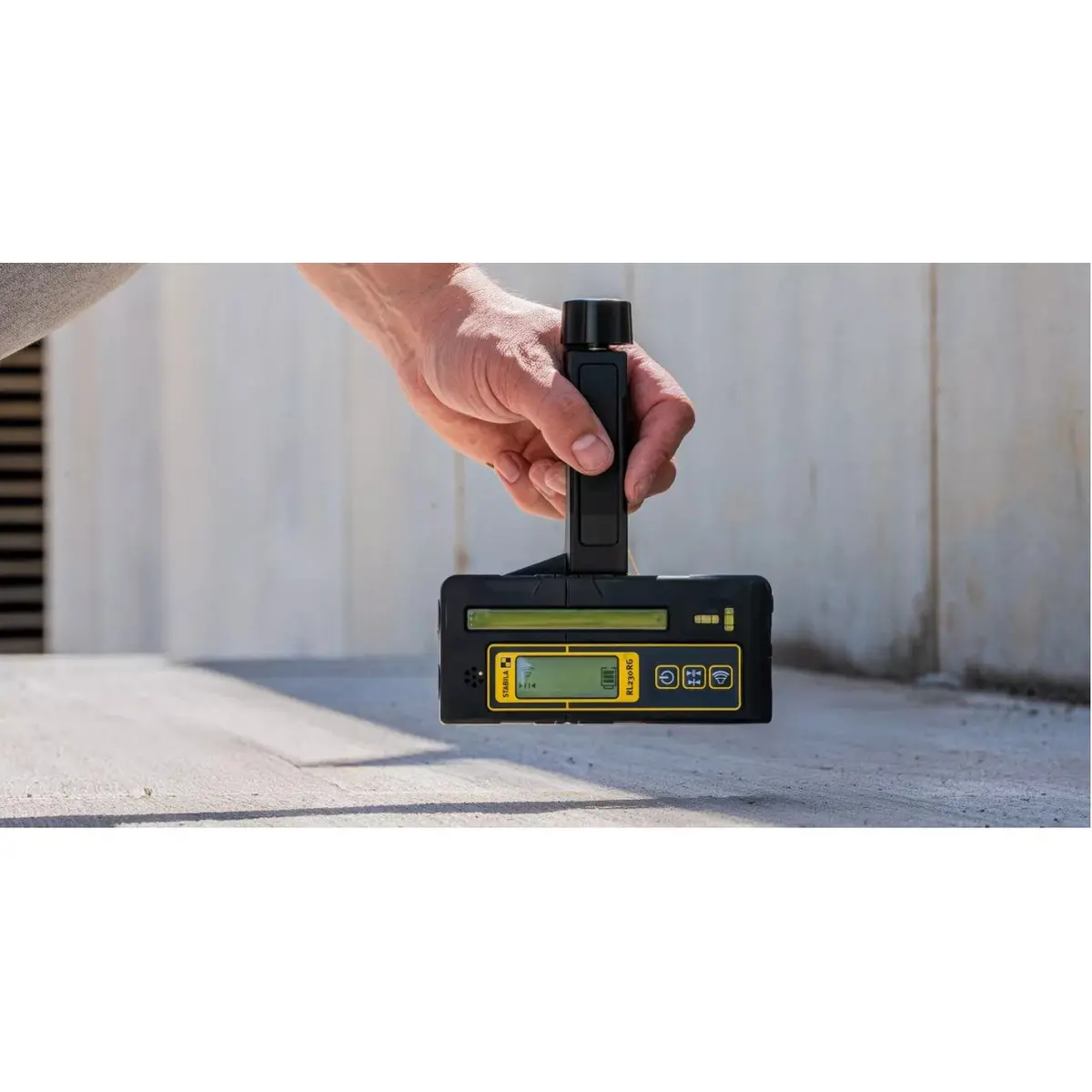

General InformationBrandSTABILACountry of OriginChinaUPC089634072102California ResidentsProposition 65 WarningPart Number07210Product TypeLine receiver Physical CharacteristicsWeight0.54 kg1.20 lbColorBlack DetailsFeaturesLaser receiver for determining the precise position of the laser beam of pulse-modulated line lasers with green or red laser diodes – even over long distances or in strong sunlight.
Digital display on both sides for fast work – lights up at the touch of a button.
Visual display: Arrow symbols on the display indicate the position of the receiver in relation to the reference plane of the laser.
Switchable acoustic guidance with adjustable beep volume (loud: 105 dB, quiet: 85 dB).
Two adjustable sensitivity levels to match the application – “Fine” with a sensitivity of ± 1/32 in (± 1 mm) or “Coarse” with a sensitivity of ± 1/8 in (± 3 mm) for higher ranges.
Waterproof and dustproof in accordance with protection rating IP 66.
A variety of mounting options – a bracket for attaching to leveling rods and an integrated magnet system.
Battery status display.
Height of the receiver line: 3 1/2 in (90 mm).
Operating time: 45 hoursBatteries2 x AA batteries
