Description

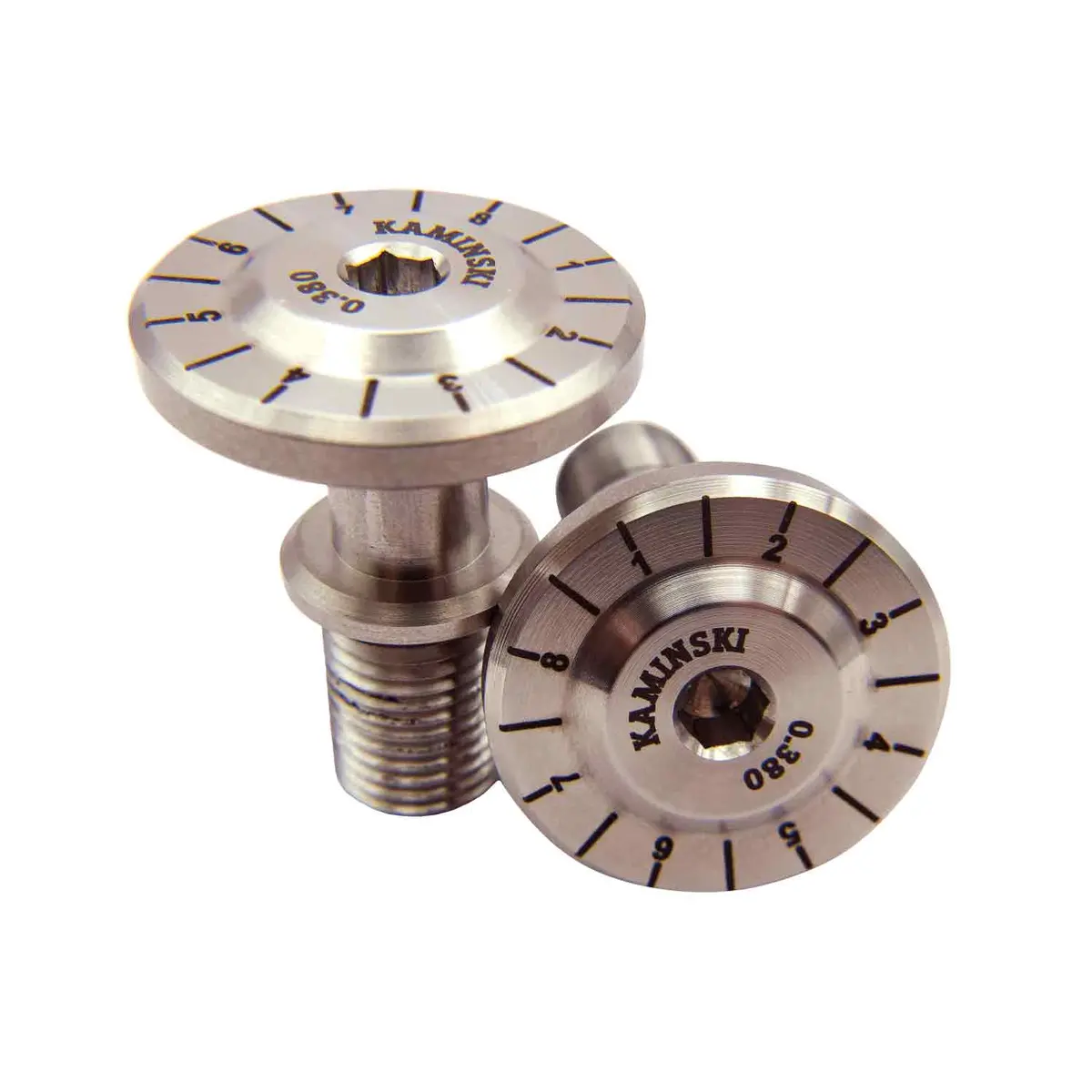

Upgrade your riser from factory components and install the Kaminski Precision Tiller Bolts. Make bow tuning easier by using the tightest tolerances in the limb-to-tiller bolt interface. Get results with the most consistent limb alignment and shoot tighter groups downrange.
Specifications:
- Precision Machined to .001″
- .375″ model bolts measure between .374-.375″
- .380″ model bolts measure between .379-.380″

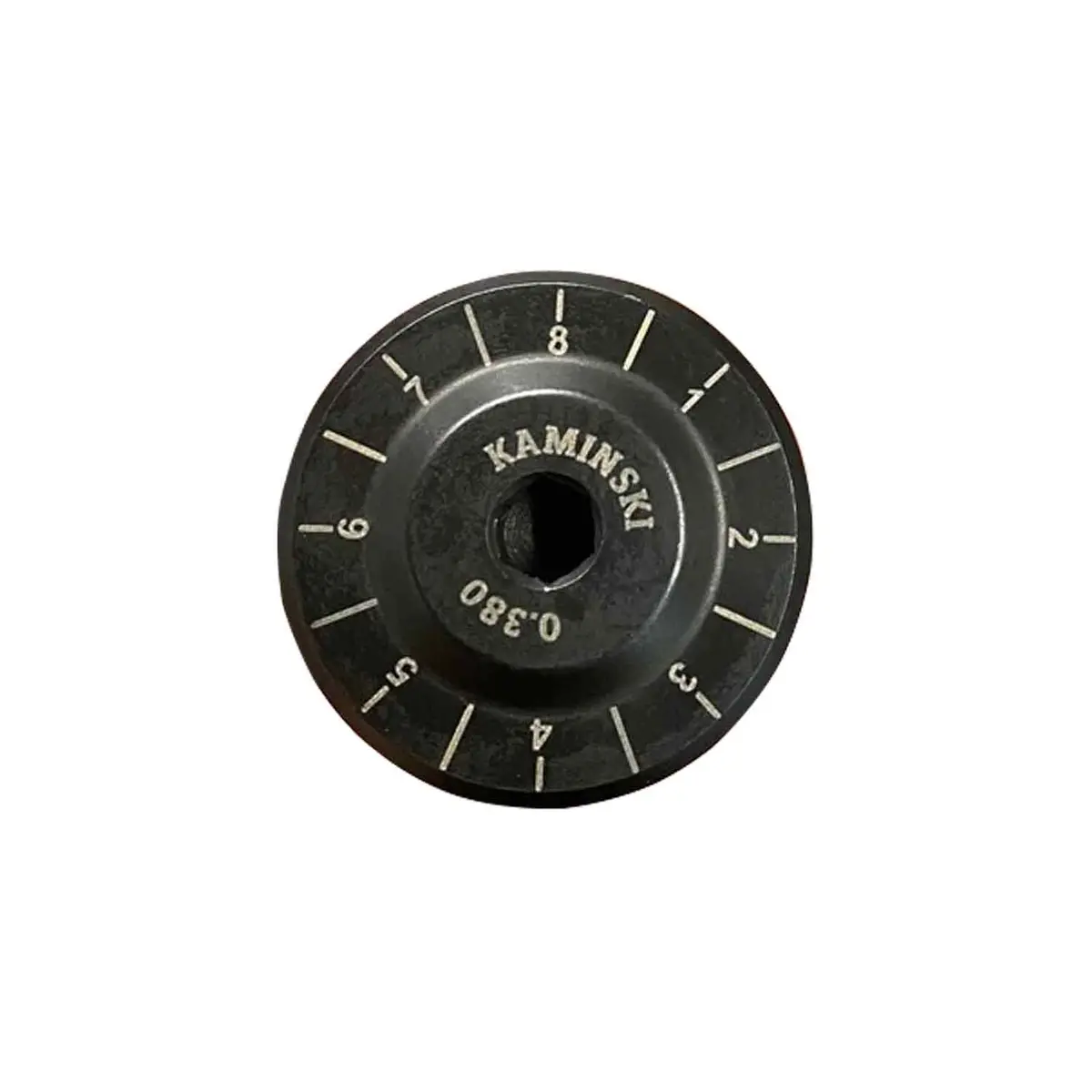

- Laser Engraved Indicators for easier and more consistent tuning, and tiller adjustment
- Durable stainless steel construction
- Weight: 1.56 oz (44 g)
- Quantity: 2-pack
Fitment
- Available to Fit 2009 and Newer HOYT Risers
- Hoyt Model does not include a locking grub screw and may be purchased separately if needed (Item 2560668)
- Available to Fit Win & Win
- For A&B type risers that use M13x1.25 threaded tiller bolt, including but not limited to; INNO AXT, INNO AL1, Winex, Winact-VT, META DX, RADICAL PRO, ATF, ATF-X, ATF-DX, TFT, TFT-G, CX7 WINEX, CXT (With M13x1.25 Tiller Bolt)
- Win & Win model also fits Sebastien Flute NEO, EVO, ISO PRO, Ascent, and Newtron risers
- Win & Win model includes the collet locking set screw
Sizing:
- Measure the inside of your limb fork where the Tiller Bolt interfaces with the limb
- Using a set of calipers, ensuring the tool is perpendicular to the inside of the forks record a measurement to determine the tightest fit
- For measurements .3765″ and under order Model .375″ bolt
- For measurements .377″ and over order Model .380″ bolt
Note: does not fit the INNO Max, INNO CXT (with M12x1.25mm Tiller Bolt), RCX-100, Rapido, SF Forged Plus, SF Axiom+L, SF Axiom Plus Light, SF Axiom, and SF Premium Plus risers (these use C type bolts and use M12x1.25mm thread)
